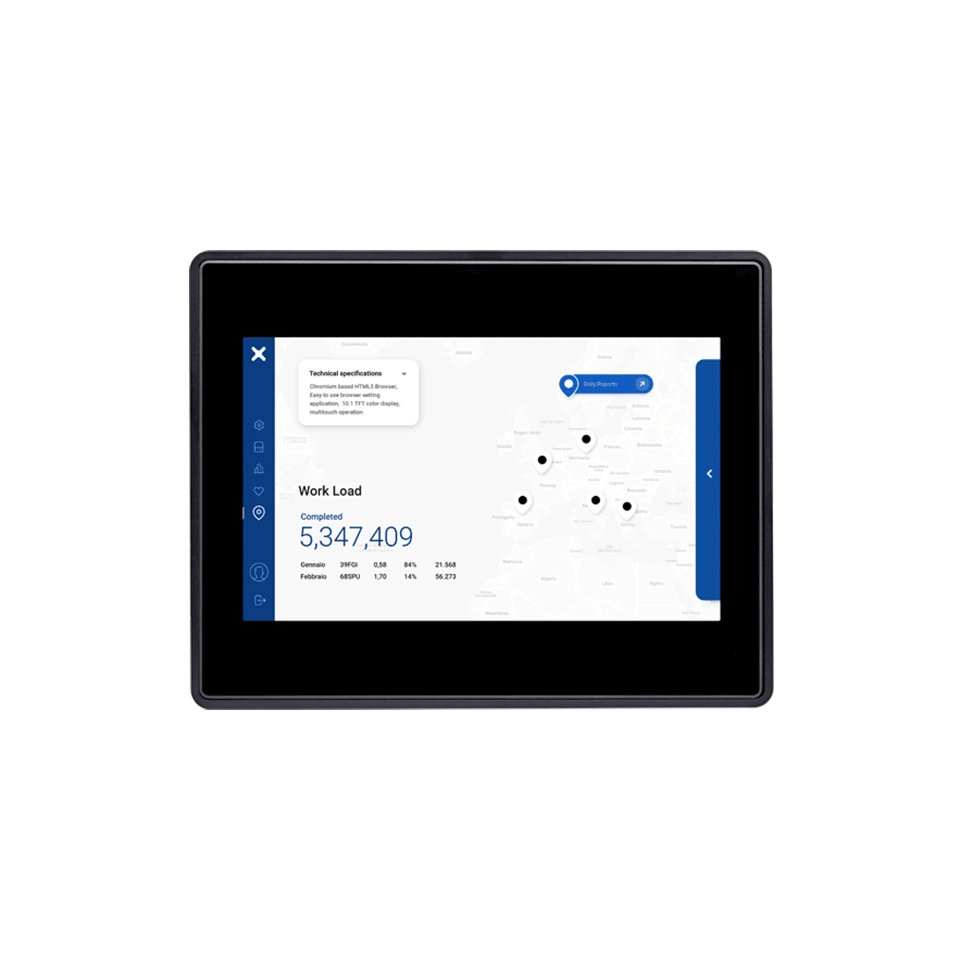

eX700M | Web based HMIs The WEB HMI eX707M by EXOR International offers a revolutionary UI, unlike anything seen in the industrial sector. The series combine state-of-the-art connectivity features and top web browsing performance in a great designed and robust HMI. It is the ideal choice for all demanding IoT edge applications in factory, marine and building automation where powerful and performing HTML5 web browser is needed. HTML5 web application interfaces are used to display and interact with real time data. As a Web HMI, eX707M can easily display HTML5 data from multiple devices.
Product Details
Overview
The glass projected capacitive touchscreen and the brilliant 7 inch widescreen display with resolution of 800x480 guarantee great optical performance; with the support of multitouch gesture programming they can create the most natural human interfaces.
eX707M HMI include a Chromium based HTML5 browser supporting kiosk mode operation. Supports Corvina secure connectivity with full network separation.
Key features
- Chromium based HTML5 Browser
- Easy to use browser setting application
- 7 inch color display, resolution 800x480 pixel
- Dimmable LED backlight
- Projected capacitive touchscreen. True glass design.
- Multitouch operation
- Operating Temperature -20°C to +60°C
- IECEx, ATEX, DNV-GL, cULus, cULus: Class 1 Div 2
Product Attributes
| Approvals | |
| CE 30/EU | Electromagnetic Compatibility Directive 2014/30/EU (EMC) |
| ATEX | Zone 2/22: II 3 G Ex ec IIC T5…T4 Gc, II 3 D Ex tc IIIC T95°C Dc | -20°C ≤ Tamb ≤ +60°C or 0°C ≤ Tamb ≤ +50°C |
| IECEx | Zone 2/22: Ex ec IIC T5…T4 Gc, Ex tc IIIC T95°C Dc | -20°C ≤ Tamb ≤ +60°C or 0°C ≤ Tamb ≤ +50°C |
| UL61010 | cULus: UL61010-1 / UL61010-2-201 |
| UL C1 | cULus: Class 1 Div 2 |
| DNV-GL | Yes |
| RCM | Yes |
| Color | |
| 16M | 16M |
| Dimensions And Weights | |
| Faceplate LxH | 187×147 mm (7.36×5.79″) |
| Cutout AxB | 176×136 mm (6.93×5.35″) |
| Depth | 47+8 mm (1.85+0.31”) |
| Weight | 1.5 Kg |
| Display Size | |
| 7 | 7 |
| Environment Conditions | |
| Operating Temp | -20° to +60 °C (vertical installation) Plug-in modules and USB devices may limit max temperature to +50 °C |
| Operating / Storage Humidity | 5-85% RH, non condensing |
| Protection Class | IP66 (front), IP20 (rear) |
| Storage Temperature | -20°C to +70°C |
| Ethernet port | |
| 3 Port | (port 0 – 10/100/1000, port 1 – 10/100, port 2 – 10/100) |
| Interface | |
| USB port | 2 (Host V2.0, max. 500 mA) |
| Serial port | 1 (RS-232, RS-485, RS-422, software configurable) Max 3 serial ports using plug-in modules. |
| SD card | Yes |
| Expansion | 2 slot for plug in modules |
| Power Supply | 24 Vdc ( 10 to 32 Vdc ) |
| Current Consumption | 0.7 A at 24 Vdc (max.) |
| Battery | Rechargeable Lithium battery, not user-replaceable |
| Input Protection | Electronic |
| Resolution | |
| 800x480 | WVGA |
| System Resources | |
| Brightness | 500 Cd/m2 tip |
| Operating System | Linux RT |
| Dimming | Yes |
| CPU | 64-bit RISC quad core - 1.6 GHz |
| Flash | 8 GB |
| RAM | 2 GB |
| RTClock, RTC Back-up | Yes |
| Touch Technology | |
| Capacitive | Multitouch |
| USB port | |
| 2 Port | (Host V2.0, max. 500 mA) |
